Basic Info.
Model NO.
Coldroom
Refrigerant
Freon
Size
8′ X 8′ X 8′h 8′ X 12′ X 8′h
Use Nature
Fresh Keeping/Freezing
Certification
ISO, CE, NSF
Condition
New
Cold Room Panel
Insulating PU Panel
Voltage
110V, 220V, 380V, 420V, 440V
Power(W)
All Available
Dimension(L*W*H)
Customized
Weight
All Available
Floor of Room
Concrete or Anti-Skidding Aluminum
Panel
50/75/100/120/150/200 mm PU/PIR Panels
Cooling Approach
Water Cooled or Air Cooled
Steel Thinckness
0.426-0.8mm
Insulation Material
Polyurethane Sandwich Insulation Panel
Thickness of Panel
50mm 75mm 100mm 120mm 150mm200mm
Thickness of Galvanized Steel
0.4, 0.5, 0.6, 0.8 mm
Cold Room Doors
Hinged Sliding Door
Panel Control System
Digital Displayer
Refrigeration System
New Generation of Smart Cooling System
Transport Package
Standard Package
Specification
Customized
Trademark
OnlyKem
Origin
China
HS Code
8418991000
Production Capacity
800sets/Month
Product Description

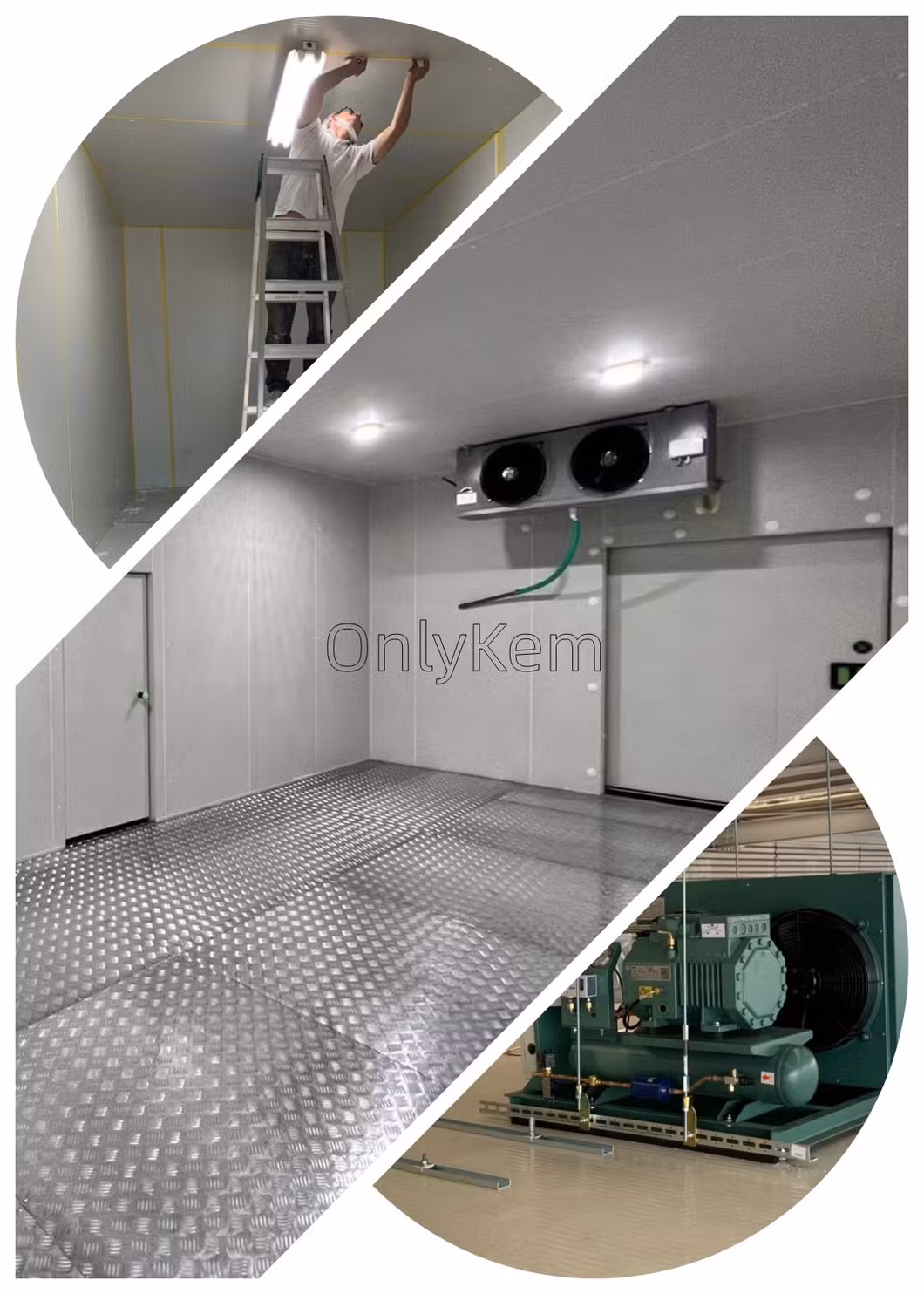

Commercial Cold Storage Walk-in Freezer Cold Chamber Coldroom
Introduction of Coldroom:
Coldroom is a warehouse that artificially generates a specific temperature. It is usually designed to
store products in an environment below the outside temperature. Combination cold room was
assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can
choose different size and the thickness of the material according to the requirements of panel products.
Coldroom Features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.
Coldroom is a warehouse that artificially generates a specific temperature. It is usually designed to
store products in an environment below the outside temperature. Combination cold room was
assembled by PU panels,cold room at the same time has good air tightness and heat insulation effect.
According to the requirements of use of thermal insulation and cold room panel place is different, can
choose different size and the thickness of the material according to the requirements of panel products.
Coldroom Features:
1. Temperature range: for Vegetables and Fruits -5°C+5°C are all available; for Meat and Seafood -18°C.
2.Size: Customization.
3. Function: preservation, freezing, quick freezing.
4. Good performance, low noise and high reliability.
 |  |
| PUR/PIR Panel | ||
| Thickness | 75mm 100mm 120mm 150mm 200mm | |
| Width | Standard: 960mm Customization Available | |
| Length | Maximum 11.8m without connection | |
| PU Parameters | Density ≥ 42kg/m³ Flame Retardent Time ≤ 5s Hook Distance = 900mm | |
| Plate | Color Steel | 0.326mm 0.376mm 0.426mm 0.476mm |
| Stainless Steel | 0.4mm 0.5mm | |
| BaoSteel | 0.5mm | |
| Embossed Aluminium | 0.7mm 0.8mm | |
Cold Room Door
1.Perfect sealing
2.Reliable, safe and easy to operate
3.Cold Room Door Series: hinged door,sliding door,swing door,replaced door
4.Replaced Door: Whether you want to replace the original door or open a new door of the old cold room.
2.Reliable, safe and easy to operate
3.Cold Room Door Series: hinged door,sliding door,swing door,replaced door
4.Replaced Door: Whether you want to replace the original door or open a new door of the old cold room.
5.Size:
Hinged door: the standard size is 0.8 m wide and 1.8 m high, we accept customization, but its width should not exceed1.2 m.
Double swing door: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service life.
Sliding door: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out.
It is often used in larger freezer, such as 6 m in length and 5 m width.
Double swing door: if the width exceeds 1.2 m, we recommend double swing door. It can even the weight of hinge and extend service life.
Sliding door: the standard size is 1.5 m in width and 2 m in height, very convenient for trolley get in and out.
It is often used in larger freezer, such as 6 m in length and 5 m width.
 | Condensing Unit •Compressor Optional: Original German Bitzer Brand •Condenser:Air cooled or Water cooled(for higher ambient temperature) •Frame:can be stell shell with spray painting or open type on stell frame •Voltage: 220V/1PH/50HZ or 60HZ 380V-415V/3Ph/50HZ or 60HZ 220V~415V/3PH/60HZ •Refrigerant:R22/R404a/R410a •Capacity:Singe compressor 2HP-50HP |
| Evaporator • Shell: Steel with spraying,Aluminum,SS304 •Temperature: DL -5~5ºC(fin space 4.5mm) DD -15~-20ºC(fin space 6.0mm) DJ -25ºC(fin space 9.0mm) •Defrosting:Hot Gas,Electric Heater •Capacity: DL 2.2-122KW DD1.4-88KW DJ:1.7-58KW •Fins:Blue fins,better heat exchane effects •Water Receiver:Double |  |
The protective packaging of the Smart Packaged Unit:
1. Wooden box: fix the compressor and fan to prevent shaking
2. Bottom support: easy to load and unload to prevent packaging damage
The protective packaging of the PU Panel:
1, film packaging to prevent moisture, rust and transportation scratches
2. Four-corner cardboard protection to prevent impact
3, neatly placed, avoid shaking
1: Whats the dimension of cold room : Length*Width*Height by Meter
2: What kind of goods will loading inside? What's the indoor temperature?
3: What's the industry voltage ?
